"H-O" Scale

ROOFWALKS

SIGNALS

POWER POLES

TELLTALES

DECALS





BOXCAR ROOFWALKS......... Roofwalks Picture...SEE PICTURES

Get rid of those oversized plastic roofwalks. Add a touch of class to your cars.

Our roofwalks are see-through etched brass, are designed to fit most standard 40ft. and 50ft. boxcars, and come complete with grab irons and end braces.

Roofwalk drawing...

Description
Item #
Price
40 FT. ROOFWALK
#RW6 - 2/pk
$8.25
50 FT. ROOFWALK
#RW6A - 2/pk
$9.00

[Rail Divider]


CANTILEVER SIGNAL BRIDGE.... SEE PICTURE

In the 1920's the New York Central System began using these unique signals south of Albany on its 4 track main lines. Model Memories has faithfully reproduced this unique signal bridge in H-O scale from etched brass and plastic..ETCHED BRASS detailed "see thru" walkways and steel lattice construction. .ACCURATE DETAILS: Signal number boards with etched numbers as well as maintenance platforms and ladders.

Lighting your signal - see below



.....Interlocking signal bridgeINTERLOCKING.........Double track signal bridge DOUBLE TRACK

Description
Item #
Price
Double Track Interlocking
#ISBA2
$125.00
Double Track Interlocking - Lighted
#ISBA2-L
$255.00
Double Track
#2SBA2
$112.00
Double Track - Lighted
#2SBA2-L
$172.00

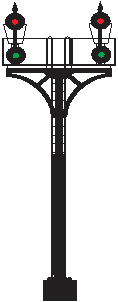

SP, AT&SF, UP CANTILEVER SIGNAL .... SEE PICTURE

This signal was used by many railroads to provide both single and double track control.. The SP, AT&SF, UP, GM&O, B&O and others
incorporated this signal in their operations. Model Memories offers this museum quality signal in fine-scale etched brass** fully painted
with and without LED lighting. Included with each signal is an assembled and painted electrical cabinet.

** signal head and raincaps plastic.

4 Standard Configurations

Description
Item #
Price
SP/SF/UP 2-track - 2 signal targets  Similar to signal shown with single target
Un-lighted
#CS22xN
$140
Lighted
#CS22xY
$180
SP/SF/UP 2-track - 4 signal targets  Shown
Un-lighted
#CS24xN
$155
Lighted
#CS24xY
$235
SP/SF/UP 1-track - 2 signal targets  Single target on each side of signal structure.
This configuration handles
bi-directional traffic
Un-lighted
#CS12xN
$140
Lighted
#CS12xY
$180

SP/SF/UP 1-track - 4 signal targets  Two targets on each side of
signal structure.
This configuration handles
bi-directional traffic
Un-lighted
#CS14xN
$155
Lighted
#CS14xY
$235

We can handle special requirements - Call or email if you need a special configuration.

NOTE: When ordering, please replace "x" in item # with color choice: S = Silver, B = Black
Example: CS22BY = Black with lighting

NOTE: Silver signal has black signal heads

NOTE: Lighted signal LEDs are common Anode (+)

NOTE: All lighted signals use super brite Tri-color, Tru-color LEDs w/common Anode


PLATFORM SIGNAL .... SEE PICTURE

Platform Signal Platform Signal

Platform Signal and parts

  • All brass construction
  • Made in the USA

Assembled Signal (no masts) - $145.00
Short mast - $ 5.00
will accommodate 2 single or 1 multi-
light target
Tall mast w/ maint.. platform - $ 25.00
will accommodate 2 multi-light targets or
2 or 3 single light targets

Targets (installed)
unlighted
lighted
Single light
$ 5.00
$ 15.00
2 light Dual
$ 5.00
$ 21.00
3 light Triple
$ 5.00
$ 27.00






Note:
Targets are plastic or 3D printed
Masts installed based on track spacing


Platform Signal
  Signal
No
Masts		 Short
Mast		 Tall
Mast		 Target
Single
No
Lights
Target
Dual
No
Lights
Target
Triple
No
Lights
Target
Single
Light
Target
Dual
Light
Target
Triple
Light
Part #
PS1
SM
TM
STNL
DTNL
TTNL
STL
DTL
TTL
Price
$145.00
$5.00
$25.00
$5.00
$5.00
$5.00
$15.00
$21.00
$27.00

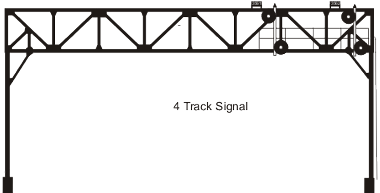

NYC 2 and 4 Track Signal Bridge... SEE PICTURE

These signals were used throughout the NYC. The models represent typical styles and configurations. These signals feature etched brass construction and follow prototype design and signal configurations. If you have a special signal configuration send us an email or call. We'll be pleased to help customize our signal to meet your needs.

Special Configurations:
We have modified these signals for the Southern Pacific, Santa Fe, and Union Pacific railroads.

Lighting your signal - see below



Description
Item #
Price
NYC Signal Bridge 2 Track Kit
NYCS2K
$95.00
NYC Signal Bridge 2 Track Assembled
NYCS2A
$175.00
NYC Signal Bridge 2 Track Assembled - Lighted
NYCS2AL
$250.00
NYC Signal Bridge 4 Track Kit
NYCS4K
$120.00
NYC Signal Bridge 4 Track Assembled
NYCS4A
$185.00
NYC Signal Bridge 4 Track Assembled - Lighted
NYCS4AL
$260.00

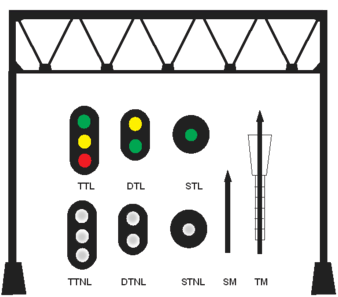

ATSF SIGNAL BRIDGE.... SEE PICTURE

  ATSF S B ridge

ATSF Signal Bridge and parts

  • All brass construction
  • Made in the USA

Assembled Bridge (no masts) - $185.00
Short mast - $ 5.00
will accommodate 2 single or 1 multi- light target
Tall mast w/ maint.. platform - $ 25.00
will accommodate 2 multi-light targets or
2 or 3 single light targets

Targets (installed)
unlighted
lighted
Single light
$ 5.00
$ 15.00
2 light
$ 5.00
$ 21.00
3 light
$ 5.00
$ 27.00







Note:
Targets are plastic or 3D printed
Masts installed based on track spacing
All LEDs are tri-color latest technology
w/common Anode
Call us to discuss details

ATSF Signal Bridge
  2 Track 3 Track Short
Mast		 Tall
Mast
Target
Single
No
Lights
Target
Dual
No
Lights
Target
Triple
No
Lights
Target
Single
Light
Target
Dual
Lights
Target
Triple
Lights
Part #
ATSF2
ATSF3
SM
TM
STNL
DTNL
TTNL
STL
DTL
TTL
Price
$145.00
$155.00
$5.00
$25.00
$5.00
$5.00
$5.00
$15.00
$21.00
$27.00



Pennsylvania RR / Northeast Corridor Catenary Signals ... SEE PICTURES

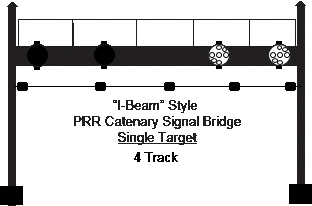

PRR "I-BEAM" Style Signal w/ Round Targets

Model Memories has faithfully reproduced an “I-Beam” style signal used by the PRR and the NE Corridor. These signals include the following features:
- Structure is hand crafted in brass
- Integrates with our catenary system
- Plastic targets use 7 x 1.8mm LEDs with only 4 wires each
- Targets can be configured with yellow or colored LEDs
- Signals are offered with Single Target or Dual Target
- Dual Target model includes safety cage and ladder
- Custom Target configurations and painting is available
Call us for custom configurations and painting options


PRR "I-BEAM" Style Signal w/ Round Targets

Description
Features
Item #
Price
2 TRACK SIGNAL (NON-LIGHTED)
 2 MASTS AND 2 ROUND POSITION TARGETS (Note 2) PRR2188
$169.00
2 TRACK SIGNAL (LIGHTED) SAME AS ABOVE W/ YELLOW OR COLORED LEDs
 PRR2188-L-Y OR C (Note 1)
$213.00

3 TRACK SIGNAL (NON-LIGHTED) 3 MASTS AND 3 ROUND POSITION TARGETS PRR3188
$186.00
3 TRACK SIGNAL (LIGHTED) SAME AS ABOVE W/ YELLOW OR COLORED LEDs PRR3188-L-Y OR C (Note 1)
$252.00

4 TRACK SIGNAL (NON-LIGHTED) 4 MASTS AND 4 ROUND POSITION TARGETS PRR4188
$198.00
4 TRACK SIGNAL (LIGHTED) SAME AS ABOVE W/ YELLOW OR COLORED LEDs PRR4188-L-Y OR C (Note 1)
$291.00

ADDITIONAL TARGET(S)
NON-LIGHTED Mast and Single Target installed on structure PRR1T88
$12.00
LIGHTED Mast and Single Target installed on structure PRR1T88-L-Y or C (Note 1)
$32.00

NOTE 1: Y = YELLOW LEDS, C = COLORED LEDS
NOTE 2: Masts can be positioned on same or opposite sides of the signal bridge
Call for more details and special configurations

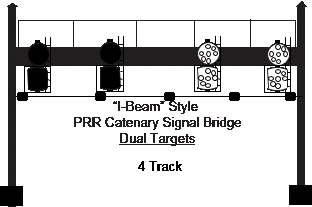

PRR "I-BEAM" Style Signal w/ Round and Flat Targets


PRR "I-BEAM" Style Signal w/ Round and Flat Targets

Description
Features
Item #
Price
2 TRACK SIGNAL (NON-LIGHTED)
 2 Masts and 2 Round and 2 Flat Position Targets (Note 2)
 PRR2288
$237.00
2 TRACK SIGNAL (LIGHTED) SAME AS ABOVE w/yellow or colored LEDS
 PRR2288-L-Y OR C (Note 1)
$285.00

3 TRACK SIGNAL (NON-LIGHTED) 3 Masts and 3 Round and 3 Flat Position Targets
 PRR3288
$281.00
3 TRACK SIGNAL (LIGHTED) SAME AS ABOVE w/yellow or colored LEDS
 PRR3288-L-Y OR C (Note 1)
$353.00

4 TRACK SIGNAL (NON-LIGHTED) 4 Masts and 4 Round and 4 Flat Position Targets
 PRR4288
$325.00
4 TRACK SIGNAL (LIGHTED) SAME AS ABOVE w/yellow or colored LEDS
 PRR4288-L-Y OR C (Note 1)
$400.00

ADDITIONAL TARGET(S)
NON-LIGHTED Mast and Dual Target w/ Maint Platform, w/ Protective Screens, Ladder installed on structure PRR2T88
$39.00
LIGHTED Mast and Dual Target w/ Maint Platform, w/ Protective Screens, Ladder installed on structure PRR2T88-L-Y or C (Note 1)
$87.00

NOTE 1: Y = YELLOW LEDS, C = COLORED LEDS
NOTE 2: Masts can be positioned on same or opposite sides of the signal for bi-directional traffic
NOTE 3: Includes Maint. platform w/protective screens, ladder
Call for more details and special configurations

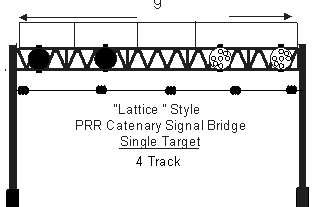

Pennsylvania RR "Lattice Style" Catenary Signal

Model Memories has faithfully reproduced a “Lattice” style signal used by the PRR. These signals include the following features:
- Structure is hand crafted in brass, painted Flat Black
- Integrates with our catenary system
- Plastic targets use 7 x 1.6mm LEDs with only 4 wires each
- Targets can be configured with yellow or colored LEDs
- Signals are offered with Single Target or Dual Target
- Dual Target model includes safety cage and ladder
- Custom Target configurations and painting is available
Call us for custom configurations and painting options


PRR "Lattice" Style Signal w/ Round Targets


PRR "Latice" Style Signal w/ Round Targets

Description
Features
Item #
Price
2 TRACK SIGNAL (NON-LIGHTED)
 2 MASTS AND 2 ROUND POSITION TARGETS - MASTS CAN BE POSITIONED ON ONE OR OPPOSITE SIDES OF THE SIGNAL BRIDGE PRR2145
$271.00
2 TRACK SIGNAL (LIGHTED) SAME AS ABOVE W/ YELLOW OR COLORED LEDs
 PRR2145-L-Y OR C (Note 1)
$311.00

3 TRACK SIGNAL (NON-LIGHTED) 3 MASTS AND 3 ROUND POSITION TARGETS (Note 2) PRR3145
$303.00
3 TRACK SIGNAL (LIGHTED) SAME AS ABOVE W/ YELLOW OR COLORED LEDs PRR3145-L-Y OR C (Note 1)
$363.00

4 TRACK SIGNAL (NON-LIGHTED) 4 MASTS AND 4 ROUND POSITION TARGETS (Note 2) PRR4145-NL
$315.00
4 TRACK SIGNAL (LIGHTED) SAME AS ABOVE W/ YELLOW OR COLORED LEDs PRR4145-L-Y OR C (Note 1)
$395.00

ADDITIONAL TARGET(S)
NON-LIGHTED Mast and Single Target installed on structure PRR1T45
$12.00
LIGHTED Mast and Single Target installed on structure PRR1T45-L-Y or C (Note 1)
$32.00

NOTE 1: Y = YELLOW LEDS, C = COLORED LEDS
NOTE 2: Masts can be positioned on same or opposite sides of the signal for bi-directional traffic
Call for more details and special configurations

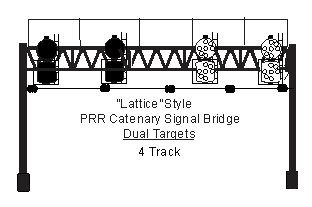

PRR "Lattice" Style Signal w/ Round and Flat Targets


PRR "Latice" Style Signal w/ Round and Flat Targets

Description
Features
Item #
Price
2 TRACK SIGNAL (NON-LIGHTED)
 2 MASTS AND 2 ROUND 2 FLATSIDE POSITION TARGETS
MAINT. PLATFORM W/ PROTECTIVE SCREENS, LADDER
- MASTS CAN BE POSITIONED ON ONE OR OPPOSITE SIDES OF THE SIGNAL BRIDGE
PRR2245
$317.00
2 TRACK SIGNAL (LIGHTED) 2 MASTS AND 2 ROUND 2 FLATSIDE POSITION TARGETS
MAINT. PLATFORM W/ PROTECTIVE SCREENS, LADDER - MASTS CAN BE POSITIONED ON ONE OR OPPOSITE
SIDES OF THE SIGNAL BRIDGE
PRR2245-L-Y OR C (Note 1)
$405.00

3 TRACK SIGNAL (NON-LIGHTED) SAME AS ABOVE W/ 3 ROUND 3 FLATSIDE POSITION TARGETS
PRR3245
$372.00
3 TRACK SIGNAL (LIGHTED) SAME AS ABOVE W/ 3 ROUND 3 FLATSIDE POSITION TARGETS PRR3245-L-Y OR C (Note 1)
$504.00

4 TRACK SIGNAL (NON-LIGHTED) SAME AS ABOVE W/ 4 ROUND 4 FLATSIDE POSITION TARGETS PRR4245
$407.00
4 TRACK SIGNAL (LIGHTED) SAME AS ABOVE W/
4 ROUND 4 FLATSIDE POSITION TARGETS 		PRR4245-L-Y OR C (Note 1)

$583.00

ADDITIONAL TARGET(S)
NON-LIGHTED Mast and Dual Target w/ Maint Platform, w/ Protective Screens, Ladder installed on structure PRR2T45
$35.00
LIGHTED Mast and Dual Target w/ Maint Platform, w/ Protective Screens, Ladder installed on structure PRR2T45-L-Y or C (Note 1)
$79.00

NOTE 1: Y = YELLOW LEDS, C = COLORED LEDS
NOTE 2: Masts can be positioned on same or opposite sides of the signal for bi-directional traffic
Call for more details and special configurations

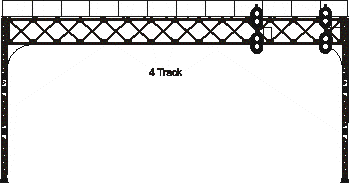

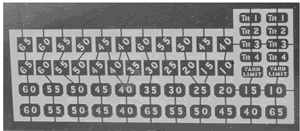

DL&W Signal Bridge and Limit Signs.... SEE PICTURE

These beautiful signals were used throughout the Delaware Lackawanna & Western system. Model Memories faithfully reproduces these signals in serveral sizes and signal configurations to meet your model railroad needs.

H-O Scale




9" wide

Features:

  • Etched brass construction *
  • Accurate maintenance platforms and ladders
  • Fully Assembled
  • Available in 2, 3, and 4 track widths
  • Painted Flat or Weathered Black
  • Available fully lighted using our Tru-lens LED lighting system
  • Over 160 separate rivet gussets
  • Scaled from actual prototype
  • Hand-crafted in the USA

 * - signal targets and raincaps plastic
Description
Item #
Unlighted
Lighted
2 Track
#DL&W45-2/xy*
$272
$397
3 Track
#DL&W45-3/xy*
$297
$417
4 Track
#DL&W42-4/xy*
$297
$417

* NOTE:
Substitute for x: N = unlighted, Y = lighted
Substitute for y: F = flat black, W = weathered black

Prices include:
2 and 4 track = 2 masts + 2 dualhead targets as shown
3 track = 3 masts + 3 dualhead targets

Other configurations available.
Call or email for details and pricing

Model Memories can custom configure your signal based on the prototype used on the DL&W

  • Short or long walkway
  • Signal targets can be located on the front or back
  • We can accommodate any track spacing
  • We can provide additional signal masts and/or targets

Tell us what you need!

DL&W Speed and Limit signs

Model Memories has faithfully reproduced Yard and Speed Limit signs for the DL&W.
Each sign accurately represents the size and shape of the original.


These signs are made of etched brass and include 4 sturdy metal posts and instructions for mounting and painting.

Description
Item #
Price
DL&W Speed/Limit signs
#DL&WLS1
$10.00



LEDs - (Light Emitting Diodes) -
Lighting your Signals

We can professionally install LED lighting in your signal. All wiring is concealed within the structure and painted the color of the structure where the wire is exposed.
We common-wire LEDs using the brass structure to reduce wiring. Bi-color LEDs are common cathode and are compatible with all electronic control manufacturers. Our LEDs work on AC or DC from 5 to 20 volts. Resistors are provided.
Call or email for more details.

Description
Item #
Price
Single color LED R, Y, G
#R/Y/GLEDI
$14.25 each LED
Bi-color R/G (three wires/ LED)
#BCLEDI
$15.50 each LED
NEW - micro LED Tri-color Tru-color
Super Bright LED
#TCLEDI
$20.00 each LED

Do-it-yourself.
For the ultimate look, use our Light Emitting Diodes in place of bulbs. They must be used if you plan to light your signal. Bulbs generate too much heat and will distort the plastic targets. Our LEDs include proper resistors for 12V to 20V operation.

Description
Item #
Price
Red LED
#RLED
3 for $2.50
Amber LED
#ALED
3 for $2.50
Green LED
#GLED
3 for $2.50
Bi-color LED (Red/Green)
#BCLED
$1.75
NEW - micro LED Tri-color Tru-color Super Bright LED
#TCLED
$6.00


NYC Power Poles............ SEE PICTURE

NYC Electrified Zone Power Poles

These unique poles were used on the New York Central Hudson and Harlem Divisions extensively to carry power, telephone, and signal cables. They distributed high voltage DC current for electric locomotive operation from Grand Central Terminal and the West Side Line to Harmon, and White Plains, New York.

Model Memories faithfully reproduces these poles for your electrified layout or diorama.

Poles consist of etched brass frame, crossarms, and raincaps. Insulators and "concrete" base provided. Assembled poles are painted Weathered Silver. Four (4) heights are available: 31', 34', 37', and 40'. The kit can be built in any of these heights. Assembled poles must be ordered at the required height.

Description
Item #
Price

KIT
#NYCPP39K
$20.75
Assembled 31' (4 1/2")
#NYCPP39-31A
$32.50
Assembled 34' (5")
#NYCPP39-34A
$32.50
Assembled 37' (5 3/8")
#NYCPP39-37A
$32.50
Assembled 40' (5 3/4")
#NYCPP39-40A
$32.50

Telltales............ SEE PICTURE

Telltales - a modern safety device for all railroads

Telltales hung in front of overhead obstructions to warn brakemen, riding on top of moving cars, of an upcoming overpass, bridge, or tunnel entrance. Most railroads had these and made good use of them.

Model Memories faithfully reproduces telltales in 3 different models:

Single Track, 2 Track, and 4 Track

Features:

  • all etched-brass fine-scale parts
  • no soldering required
  • fully painted in you choice of Dull Silver or Flat Black
  • cast simulated concrete base
  • many configurations possible to best suit your needs
  • wire, hangers, and detailed instructions included



Description
Item #
Price

Single Track - Black
#TT1-38AB
$18.00
Single Track - Silver
#TT1-38AS
$18.00
2 Track - Black
#TT2-38AB
$24.75
2 Track - Silver
#TT2-38AS
$24.75
4 Track - Black
#TT4-38AB
$33.00
4 Track - Silver
#TT4-38AS
$33.00


INFO
PRODUCTS
PICTURES
. .
l .
.
.



..... .
