SIGNALS and
SIGNAL BRIDGES

In the 1920's the New York Central System began using these
unique signals south of Albany on it's 4 track main lines

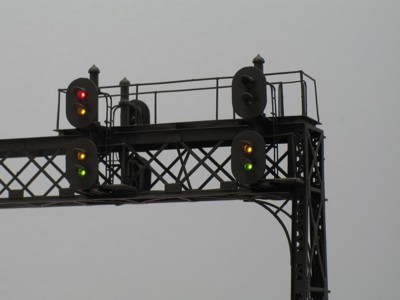

Double track signal

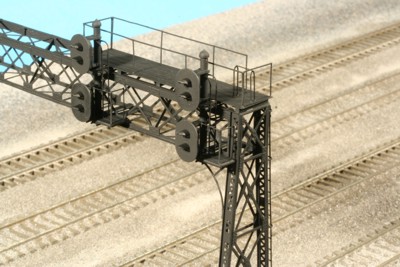

Double Track Cantilever Signal Bridge painted black

Double track interlocking signal

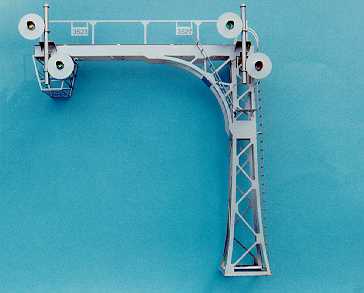

Double Track Interlocking Cantilever Signal Bridge
(photo courtesy of John Heitmann)

SP, AT&SF, UP Cantilever Signals

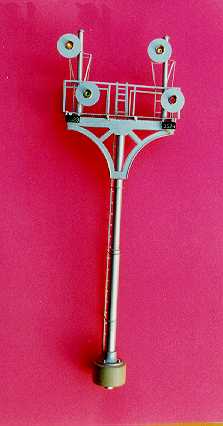

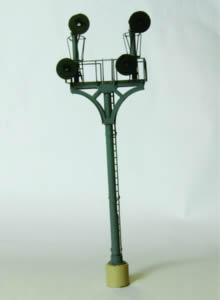

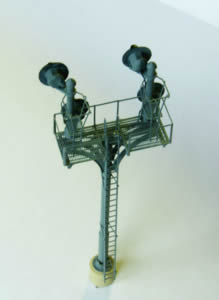

Platform Signal - B&O configuration

[Rail Divider]

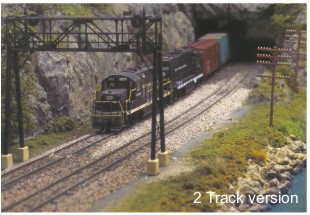

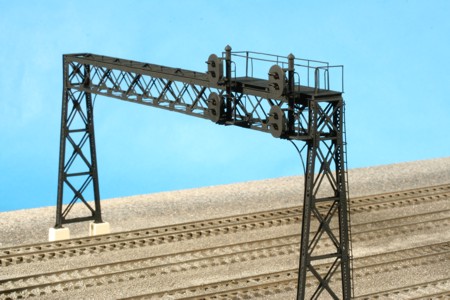

NYC 2 and 4 Track Signal Bridges

[Rail Divider]

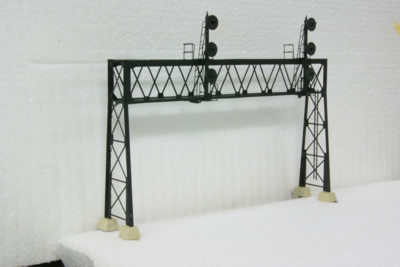

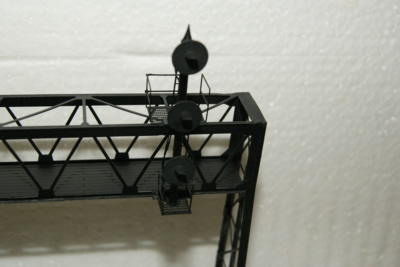

ATSF style signal

[Rail Divider]

DL&W 4 Track Signal Bridge

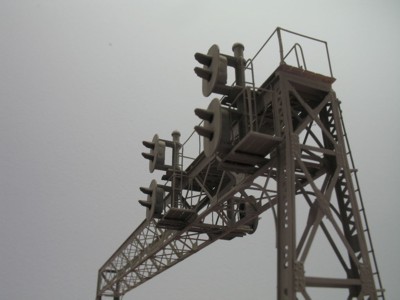

DL&W signal bridge detail

DL&W signal detail

DL&W signal bridge - optional lighted

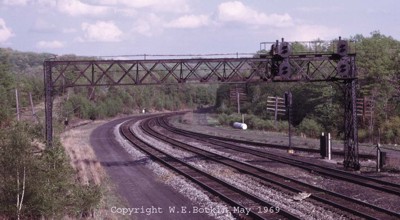

DL&W prototype - Port Morris, NJ

[Rail Divider]

PRR and NE Corridor Catenary Signals

Details of Color Position Target and Lunar (special)

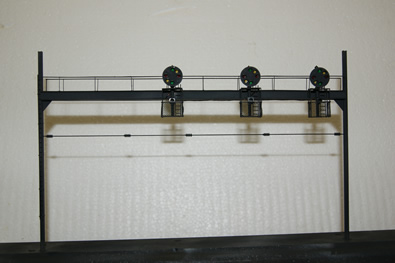

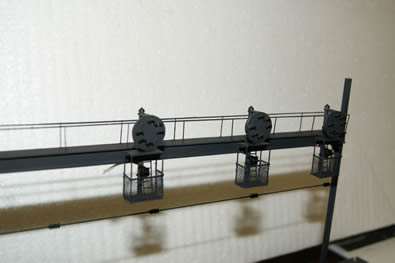

Three Track Catenary Signal

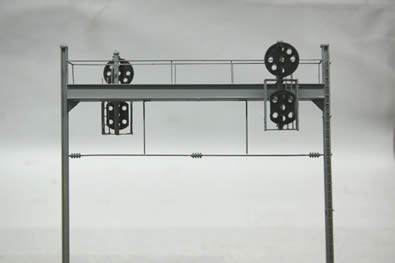

Two Track SIgnal w/ Dual non-Lighted Targets

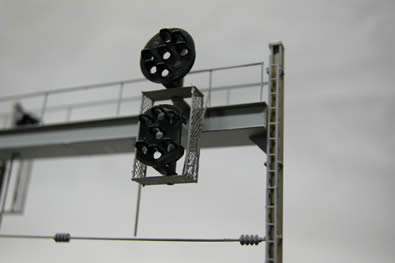

Close-up of Dual Target non-Lighted

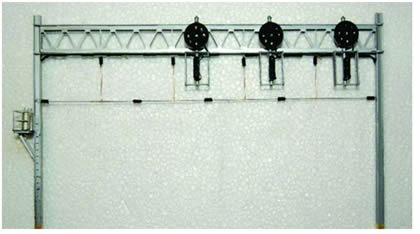

Catenary Signal - Lattice Style - 4trk Dual Target

NOTE: "S" Scale products discontinued February 2013

Double Track Signal Bridge

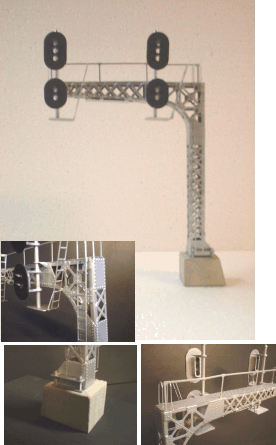

"S" Scale Cantilever Signal Bridge (No longer available)

"S" Scale Platform Signal (No longer available)

"S" Scale C&O CANTILEVER SIGNAL (No longer available)

NOTE: "S" gauge products discontinued February 2013
