"H-O" Scale CATENARY



NEW HAVEN RR CATENARY..... See Picture

In 1906 the New York, New Haven, and Hartford Railroad began an ambitious project to electrify a 33 mile section of 4 track main line between Woodlawn (Bronx N.Y.) and Stamford CT. By 1914 not only was the Stamford section complete, but the entire line to New Haven CT. had been electrified. Model Memories is proud to announce the reproduction of this feat of engineering in etched brass........

Our catenary system offers everything you need to build a New Haven style overhead wire system including catenary bridges, pre-formed overhead wire, insulators, and instructions. Designed to accurately reproduce the prototype, our system is not designed to actually distribute power to the train, although the ambitious modeler can power the wire.

To install 20" of catenary on your layout, you should order: 1 catenary bridge (2 are needed for the first section), 1 overhead wire hanger kit, 1 pk pre-formed wire.



NEW HAVEN RR - CATENARY BRIDGE AND WIRE

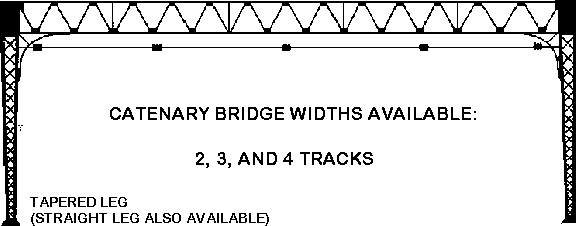

Catenary bridges are available in kit form or fully assembled. Kits include parts for two legs (choose straight or tapered), bridge span (front, back, top, bottom), corner braces, insulators, brackets, and instructions.
Assembly requires soldering ability.

NH Catenary




Catenary Bridge - NH RR Kit Item # Kit Price Assembled Item # Assembled Price
2 track tapered leg #KCBT2 $24.00 #ACBT2 $50.00
2 track straight leg #KCBS2 $24.00 #ACBS2 $50.00
3 track tapered leg #KCBT3 $25.00 #ACBT3 $52.00
3 track straight leg #KCBS3 $25.00 #ACBS3 $52.00
4 track tapered leg #KCBT4 $26.00 #ACBT4 $54.00
4 track straight leg #KCBS4 $26.00 #ACBS4 $54.00





PRE-FORMED OVERHEAD WIRE



PRE-FORMED WIRE SECTIONS - "New Haven, Pennsy and Northeast Corridor"

All wire sections are pre-formed of .025" phosphor bronze wire in 20" lengths. Instructions are included for installation.


NH Catenary wire

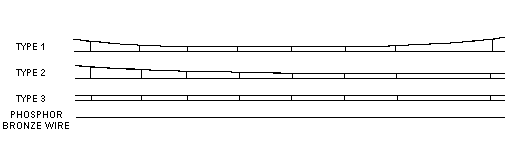

Type 1 and Type 3 are for straight and curved track.
Type 2 is a transition section from Type 1 to Type 3 wire.

Sorry, no triangular wire yet.

Description
Item #
Price
Type 1 Wire
#OWT1 - 4/pk
$18.50
Type 2 Wire
#OWT2 - 4/pk
$18.50
Type 3 Wire
#OWT3 - 4/pk
$18.50
Phosphor Bronze Wire straight 20" lengths
#OWS - 10/pk
$10.00



PRE-FORMED WIRE SECTIONS - "Milwaukee, GN, Virginian and CSS&SB"

Available in 8", 10" and 16" Lengths

Description
Item #
Price
Type 1 Wire 16"L - 4/pk
#OWT1MW16 - 4/pk
$15.00
Type 1 Wire 10"L - 4/pk
#OWT1MW10 - 4/pk
$10.00
Type 1 Wire 8"L - 4/pk
#OWT1MW8 - 4/pk
$8.00





New Haven RR Anchor Bridge - Click for Photo

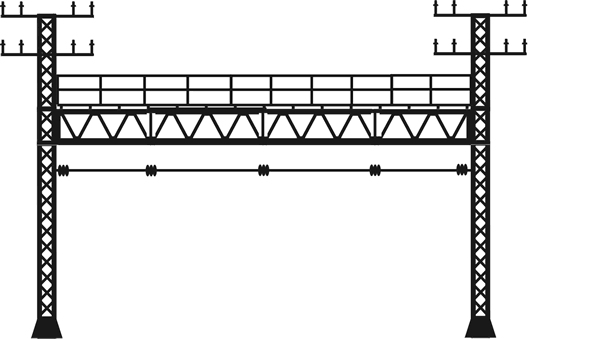

These bridges served several functions; as a support for the overhead wire, and to sectionalize overhead wire (between Anchor Bridges) removing power for maintenance. These Bridges were placed approximately every two miles and after researching many photos we’ve come to understand that no two were identical. Model Memories has reproduced one style of these beautiful Bridges.

Anchor Bridge
Item #
Price
2 Track Assembled
#AB2TK51A
$305.
3 Track Assembled
#AB3TK51A
$335.
4 Track Assembled
#AB4TK51A
$375.





CATENARY ACCESSORIES



Straight leg Tapered Leg Accessories 1 Accessories 2
Overhead Wire Hanger Pull-off Tower
CP1
CP2
NHTPO




OVERHEAD WIRE HANGER KIT

Overhead wires need to be supported and stabilized about every 10". Our kit holds the wire at the proper height above the track and stabilizes side to side movement. Model Memories wire support hangers duplicate the New Haven down to the insulators. Packaged 2 per kit.

Kit includes 2 hanger bars, support wire, 8 insulators, and instructions. Each kit is suitable for 2, 3, or 4 track applications.

NEW HAVEN RR TAPERED PULL-OFF POLE - See Picture

The New Haven used these poles on the triangular wire West of Stamford CT. These can be used anywhere on your layout and works with all of our wire types. This item is all brass and assembled.

PULL-OFF TOWER

Our New Haven tower is a straight leg style and is used to pull overhead wire to conform to curved trackage. Kit or assembled tower includes: tower, concrete base, cable brackets, wire (to simulate cables), and instructions.

CATENARY POLES

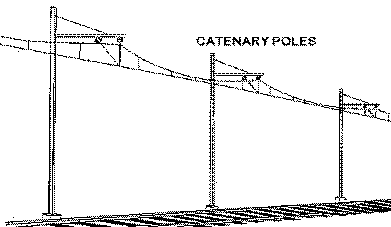

These are "I" beam style that are used on many railroads. Made of milled brass for easy soldering, and come with insulators, concrete base, and instructions .

Catenary Accessories
Item #
Price
Bridge Span 4 Track - Sides
#CBS41C - 2/pk
$14.00
Bridge Span 4 Track - Top/Bottom
#CBST41C - 2/pk
$7.00
Bridge Span 3 Track - Sides
#CBS31D - 2/pk
$13.00
Bridge Span 3 Track - Top/Bottom
#CBST31D - 2/pk
$6.50
Bridge Span 2 Track - Sides
#CBS21E - 2/pk
$12.00
Bridge Span 2 Track - Top/Bottom
#CBST21E - 2/pk
$6.00
Overhead Wire Hanger Kit
#WH1
$8.00
Catenary Poles
#CP1 - 2/pk
$16.25
Catenary Poles - 2 track
#CP2 - 2/pk
$21.50
Tapered Pull-off Pole
#NHTPO
$24.00
Pull-off Tower Kit
#POTK1
$5.50
Pull-off Tower Assembled
#POTA1
$9.50
Tapered Leg
#CBTL1A
$5.50
Straight Leg
#CBSL1B
$5.50
Brace
#CBB1E - 4/pk
$4.00
Bridge Base
#MB1 - 2/pk
$1.85
Insulators
#NHI - 4/pk
$1.00


Add even more realism to your
NEW HAVEN
Catenary System


Catenary Tower

CATENARY TOWER
Kit Item #
Kit Price
Assembled Item #
Assembled Price
Tapered Leg
#TTLTK
$5.50
#TTLTA
$14.00
Straight Leg
#STLTK
$5.50
#STLTA
$14.00

Catenary for
the Pennsylvania Railroad and Northeast Corridor

"H-O" Scale - Superdetailed Brass Construction



Northeast Corridor catenary

Catenary Bridges in three sizes:
2 tracks, 3 tracks or 4 tracks

All Catenary bridges come complete with:
signal cable crossarm
insulators
concrete base
raincaps
spanwire
messenger hangers

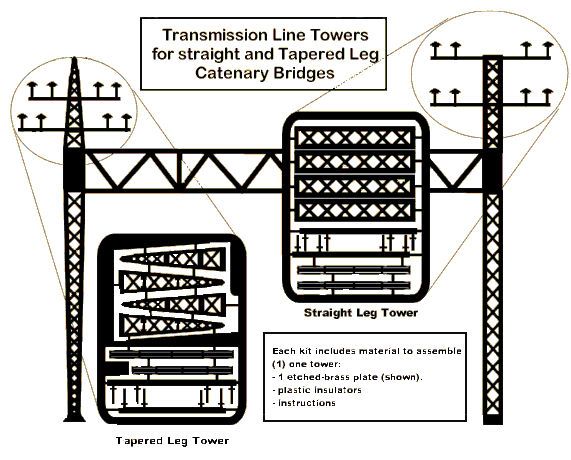

Transmission Towers in two styles:
- single crossarm
- double crossarm

Pull-off Pole



Catenary Bridges Kit Item # Kit Price Assembled Item # Assembled Price
2 track #PCAT2K $11.50 #PCAT2A $20.50
3 track #PCAT3K $12.50 #PCAT3A $22.50
4 track #PCAT4K $13.50 #PCAT4A $24.75



Transmission Tower Kit Item # Kit Price Assembled Item # Assembled Price
Single Crossarm #PTOWK1 $6.75 #PTOWA1 $9.75
Double Crossarm #PTOWK2 $8.75 #PTOWA2 $14.25



Pull-off Tower Kit Item # Kit Price
(Kit only) #POP1 $4.50

Catenary for
Milwaukee Road, Great Northern, Virginian, Chicago South Shore

Model Memories has reproduced a "generic" version of catenary for Milwaukee Road, Great Northern and Virginian. These models use all brass construction and come complete with insulators and instructions -- See Picture

Single Track single pole
Single Track double pole

Milwaukee Catenary Pole
Item #
Price
1 Track single pole
#MILWCAT1
$12.50
1 Track double pole
#MILWCAT2
$16.25



Chicago South Shore & South Bend - Catenary Bridge

These bridges are all brass with etched lattice cross-span.
They are available in 4" and 5: widths.

CSS&SB Catenary Bridge
Item #
Price
CSS&SB 4" wide
#CSS&SB4
$21.50
CSS&SB 5" wide
#CSS&SB5
$22.25



Simulated Wood Pole

Single Track Simulated Wood Pole

Simulated Wood Pole
Item #
Price
Single Track
#CP1W
$20.25pr.



Pantographs


Pantographs for your Electrics - Click to see photo

Electric locomotives, MU Cars, Interurbans, and traction equipment come in many shapes and sizes.
We strive to accommodate as many applications as possible and now offer two sizes of Pantographs to meet your needs.

Here are dimensions to help you fit our Pantograph to your model.

Our Pantographs are pre-Blackened and include insulators and mounting pins.


 Pantograph Item # Price
Medium Pantograph #PANM $18.75 ea.
Large Pantograph #PANL $24.50 ea.

..... .

.
